Laser Marking Equipment for Intergration

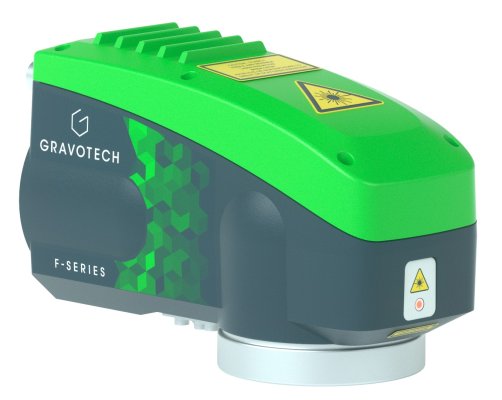

Fiber (Premium)
Our powerful and high-quality Fiber Laser engraver performs precise markings in very short cycle times. Compact, with great communication links and simple to integrate in a manufacturing process, it is the perfect laser engraver for metal and plastics.
• COMPACT DEEP LASER ENGRAVING
The heavy-duty design, based on a cast aluminum structure, and high-quality optical components guarantee strength and low maintenance. Whether integrated in a production lines or robotic cell. The integrated laser implementation is easy in all mounting positions, the laser can be oriented to the part surface to significantly reduce installation times and tooling costs.
• INDUSTRIAL LASER
Equipped to meet the needs of Industry 4.0, the fiber laser engraver for metal, can use many network and fieldbus protocols allowing full compatibility with all PLCs brands to ensure quick and cost-effective integration.
• POWERFUL FIBER LASER MARKER
This deep laser marking machine is available in several powers; 20W, 30W and 50W. 20W is adapted for most applications for surface marking, 30W is the solution for fast and high-contrast markings, and 50W is the most suitable solution for deep laser engraving.
• INDUSTRIAL LASER DESIGNED FOR HARSH ENVIRONMENTS
This metal marking laser machine is the laser marking system dedicated to harsh environments and deep laser engraving.
The robust cast aluminum housing is rigid, reduces vibration and resists shocks. The IP 54 protection rating of the head reduces long-term maintenance costs. A metal mesh Dust filter on the source helps to protect the electronics and source.
• GREAT COMMUNICATION LINKS
To facilitate and reduce the programming times of your PLCs, the laser marker is compatible with a wide range of communication protocols:
- Ethernet TCP/ IP, RS232
- Standard 8 I / 80
- Dedicated I/O via DB-37
and optional industrial communication protocols such as Profinet & Ethernet IP
• LASERTRACE (Marking And Identification Software)
Developed by Gravotech and enriched by numerous application experiences, this software includes all the functions necessary for identification and traceability.
Easily mark your parts, with text, serial numbers, logos. Generate unique codes like Datamatrix, barcodes, QR codes, UID, GS1, and configure your variables, counters and shift codes.
Delivered with each marking laser, Lasertrace allows you to create your marking files in a few clicks. Once the files have been transmitted to the control unit, your metal marking laser machine can operate on its own, or controlled by a PLC.
• OPTIONS:
- Module 3D
- Autofocus
- Vision Manager
Download Catalogue
• COMPACT DEEP LASER ENGRAVING
The heavy-duty design, based on a cast aluminum structure, and high-quality optical components guarantee strength and low maintenance. Whether integrated in a production lines or robotic cell. The integrated laser implementation is easy in all mounting positions, the laser can be oriented to the part surface to significantly reduce installation times and tooling costs.
• INDUSTRIAL LASER
Equipped to meet the needs of Industry 4.0, the fiber laser engraver for metal, can use many network and fieldbus protocols allowing full compatibility with all PLCs brands to ensure quick and cost-effective integration.
• POWERFUL FIBER LASER MARKER
This deep laser marking machine is available in several powers; 20W, 30W and 50W. 20W is adapted for most applications for surface marking, 30W is the solution for fast and high-contrast markings, and 50W is the most suitable solution for deep laser engraving.
• INDUSTRIAL LASER DESIGNED FOR HARSH ENVIRONMENTS
This metal marking laser machine is the laser marking system dedicated to harsh environments and deep laser engraving.
The robust cast aluminum housing is rigid, reduces vibration and resists shocks. The IP 54 protection rating of the head reduces long-term maintenance costs. A metal mesh Dust filter on the source helps to protect the electronics and source.
• GREAT COMMUNICATION LINKS
To facilitate and reduce the programming times of your PLCs, the laser marker is compatible with a wide range of communication protocols:
- Ethernet TCP/ IP, RS232
- Standard 8 I / 80
- Dedicated I/O via DB-37
and optional industrial communication protocols such as Profinet & Ethernet IP
• LASERTRACE (Marking And Identification Software)
Developed by Gravotech and enriched by numerous application experiences, this software includes all the functions necessary for identification and traceability.
Easily mark your parts, with text, serial numbers, logos. Generate unique codes like Datamatrix, barcodes, QR codes, UID, GS1, and configure your variables, counters and shift codes.
Delivered with each marking laser, Lasertrace allows you to create your marking files in a few clicks. Once the files have been transmitted to the control unit, your metal marking laser machine can operate on its own, or controlled by a PLC.
• OPTIONS:
- Module 3D
- Autofocus
- Vision Manager
Download Catalogue
Fiber (Energy)
ESSENTIAL LASER MARKING - SIMPLE, RELIABLE, REPEATABLE
Taking all of our expertise, our proven design, and dependable components, we have created the essential laser, the Fiber Energy. Without the need for autofocus or complex multi-level marking, we can now provide a simple stripped back experience without compromising our product quality. The Fiber Energy has a modular design using proven components to permanently identify your parts, with a high-contrast and high durability marking.
We have carried the reliability from the Fiber over to the Fiber Energy, with a IP54 marking head sealed from dust and other products, designed to cope with a harsh environment. The fiber energy also carries the full communication capacities to integrate into any manufacturing process for traceability. PROFINET, Ethernet IP, Ethernet TCP/IP and RS232 interfaces are available along with dedicated I/O and USB ports to easily connect it to your workflow.
With fiber sources available in 20W and 30W versions, you can get a precise and powerful marking on a wide range of metallic materials: steel, stainless steel, titanium, aluminum and more.
Download Catalogue
Taking all of our expertise, our proven design, and dependable components, we have created the essential laser, the Fiber Energy. Without the need for autofocus or complex multi-level marking, we can now provide a simple stripped back experience without compromising our product quality. The Fiber Energy has a modular design using proven components to permanently identify your parts, with a high-contrast and high durability marking.
We have carried the reliability from the Fiber over to the Fiber Energy, with a IP54 marking head sealed from dust and other products, designed to cope with a harsh environment. The fiber energy also carries the full communication capacities to integrate into any manufacturing process for traceability. PROFINET, Ethernet IP, Ethernet TCP/IP and RS232 interfaces are available along with dedicated I/O and USB ports to easily connect it to your workflow.
With fiber sources available in 20W and 30W versions, you can get a precise and powerful marking on a wide range of metallic materials: steel, stainless steel, titanium, aluminum and more.
Download Catalogue
CO2
The CO2 laser marker is perfectly suited for marking organic materials. Unlike conventional marking systems like inkjet or label, the laser operates without contact and does not require maintenance or consumables.
• PERMANENT DIRECT MARKING
Our powerful and versatile CO2 laser engravers use a 10600nm wavelength in the infrared range, which provides a direct, identification, and permanent marking on a wide range of materials such as natural materials (wood, leather, paper, fruits & vegetables), transparent material (glass, transparent plastics) and coated materials (painted surfaces, anodized aluminum).
• ECO-FRIENDLY SOLUTION
Direct identification marking with CO2 laser engraver is a real alternative to stamping, inkjet, or labeling in several fields. Our fast laser engraver is environmentally friendly as no ink is used and no waste is generated. The CO2 laser engraver works without materials, unlike the other alternatives, so there is no need to replace ink or stop the machine for maintenance.
• VISION MANAGER - ONE SOLUTION FOR MARKING & READING
With the efficient Vision Manager, identification of your parts is ensured. High-efficiency reading camera, easy to install, grade analysis and sending status information to the PLC are some of the features the module offers. Associated with an extremely high coding speed (up to 10,000 mm/s), the CO2 series is designed to be integrated into high productivity lines.
• NON-CONTACT MARKING
As a non-contact marking system, our CO2 laser technology can safely engrave even the thinnest glass and transparent plastic (PC & PET) without the risk of breaking the product.
The glass is only marked on its surface and for transparent/translucent PET plastics, a white marking that seems to float on the surface is achieved.
• THE WOOD MARKING MACHINE
Operating without materials, this integrated CO2 laser engraver directly marks the wood, without altering of the quality of the material. Laser marking of wood does not generate chips, but only smoke, gases, and dust which can be safely evacuated by an extraction system.
There are many marking possibilities on wood which can be obtained by adjusting the speed or the power of the CO2 laser. The marking color can vary from dark brown, through lighter shades of brown, to white.
With high power, this marking on the fly laser can easily cut into the wood and thus create engravings with on all types of wood: natural, MDF, varnished, cork, chipboard, and precious woods.
• EMBEDDED ON THE LASER
This CO2 laser marker can work independently in a production line and provide all the data required for your identification marking, without a computer. It can serialize your parts automatically, create a unique identification with sophisticated marking elements (multi-format time stamps, variables, counters, offset codes) and update the text and 1D/2D codes predefined in your templates. The efficient onboard electronics can exchange and collect information from your PLCs and database in real-time, helping you to save time and boost your productivity.
• LASERTRACE (Marking And Identification Software)
LASERTRACE is specially developed to create marking files to be downloaded into the laser system. It provides a template composition for adding text, a logo, and codes such as Datamatrix. You can easily create your own marking templates with LASERTRACE. You can define your marking process following precise rules: the actions (marking blocks) to be executed, the sequence of execution and the possibility to implement a wide range of transitions (output activations, camera blocks, variables, etc.).
Download Catalogue
• PERMANENT DIRECT MARKING
Our powerful and versatile CO2 laser engravers use a 10600nm wavelength in the infrared range, which provides a direct, identification, and permanent marking on a wide range of materials such as natural materials (wood, leather, paper, fruits & vegetables), transparent material (glass, transparent plastics) and coated materials (painted surfaces, anodized aluminum).
• ECO-FRIENDLY SOLUTION
Direct identification marking with CO2 laser engraver is a real alternative to stamping, inkjet, or labeling in several fields. Our fast laser engraver is environmentally friendly as no ink is used and no waste is generated. The CO2 laser engraver works without materials, unlike the other alternatives, so there is no need to replace ink or stop the machine for maintenance.
• VISION MANAGER - ONE SOLUTION FOR MARKING & READING
With the efficient Vision Manager, identification of your parts is ensured. High-efficiency reading camera, easy to install, grade analysis and sending status information to the PLC are some of the features the module offers. Associated with an extremely high coding speed (up to 10,000 mm/s), the CO2 series is designed to be integrated into high productivity lines.
• NON-CONTACT MARKING
As a non-contact marking system, our CO2 laser technology can safely engrave even the thinnest glass and transparent plastic (PC & PET) without the risk of breaking the product.
The glass is only marked on its surface and for transparent/translucent PET plastics, a white marking that seems to float on the surface is achieved.
• THE WOOD MARKING MACHINE
Operating without materials, this integrated CO2 laser engraver directly marks the wood, without altering of the quality of the material. Laser marking of wood does not generate chips, but only smoke, gases, and dust which can be safely evacuated by an extraction system.
There are many marking possibilities on wood which can be obtained by adjusting the speed or the power of the CO2 laser. The marking color can vary from dark brown, through lighter shades of brown, to white.
With high power, this marking on the fly laser can easily cut into the wood and thus create engravings with on all types of wood: natural, MDF, varnished, cork, chipboard, and precious woods.
• EMBEDDED ON THE LASER
This CO2 laser marker can work independently in a production line and provide all the data required for your identification marking, without a computer. It can serialize your parts automatically, create a unique identification with sophisticated marking elements (multi-format time stamps, variables, counters, offset codes) and update the text and 1D/2D codes predefined in your templates. The efficient onboard electronics can exchange and collect information from your PLCs and database in real-time, helping you to save time and boost your productivity.
• LASERTRACE (Marking And Identification Software)
LASERTRACE is specially developed to create marking files to be downloaded into the laser system. It provides a template composition for adding text, a logo, and codes such as Datamatrix. You can easily create your own marking templates with LASERTRACE. You can define your marking process following precise rules: the actions (marking blocks) to be executed, the sequence of execution and the possibility to implement a wide range of transitions (output activations, camera blocks, variables, etc.).
Download Catalogue
Hybrid
The 1064 nm HYBRID laser marker is perfect for applications requiring a great versatility in terms of marking materials at the highest speed, from plastics to metal.
• EXTRAORDINARY PEAK POWER
The Hybrid laser is characterized by its peak power and extremely short pulse duration. Thanks to its high peak power of up to 150,000 W per shot, which is 15 times more powerful than a standard fiber laser at the same energy level, it offers a unique interaction on plastics for high-contrast marking permanent marking.
• DPSS LASER
The small diameter of the laser spot is combined with a very short pulse duration of 8ns, 10 times shorter than a standard fiber laser. The quality of the direct marking is perfect, with no halos or distortion due to heating. It is the ideal solution for applications requiring thin marking and perfect aesthetic results such as the horology and jewelry sectors.
• VERSATILITY: METAL OR PLASTIC ENGRAVING
All types of direct marking finishes are possible thanks to the power range of the HYBRID laser. It is the perfect solution when you have a variety of parts made of different materials from hard metal to soft plastic engraving.
• INTEGRATED LASER DIRECT MARKING
This module guarantees exact and consistent DPSS laser marking without any mechanical adaptation when you change the type of part. It simplifies your integration: No need to re-adjust the focal distance, even when you are marking various types of parts with different heights on the same line. It offers more flexibility on your production lines, giving the possibility to have parts with a difference of up to 4.72 in. height without moving the laser. Just select the right marking job and you are ready to switch to another product line.
• MORE QUALITY IN ALL CONDITIONS
This module is combined with a distance sensor to make an Autofocus. The integrated laser automatically detects the part surface and adjusts the focal distance without any calibration or waiting time. Guarantee of optimal marking quality regardless of the flatness of the parts or their shape, constant contrast & depth.
Boost your productivity with the fastest solution. Instant refocus - Less than .1 second to change focal distance and reduce your marking cycle time.
• MORE POSSIBILITIES IN PERMANENT MARKING
This HYBRID laser marker also manages cylindrical surfaces, angled planes, and multilevel surfaces without any head movement. Instantaneous marking on a complex part with the possibility to mix curved surfaces and angled planes at different heights up to 4.72 in amplitude. No character deformation and a uniform contrast over the entire engraving area.
Download Catalogue
• EXTRAORDINARY PEAK POWER
The Hybrid laser is characterized by its peak power and extremely short pulse duration. Thanks to its high peak power of up to 150,000 W per shot, which is 15 times more powerful than a standard fiber laser at the same energy level, it offers a unique interaction on plastics for high-contrast marking permanent marking.
• DPSS LASER
The small diameter of the laser spot is combined with a very short pulse duration of 8ns, 10 times shorter than a standard fiber laser. The quality of the direct marking is perfect, with no halos or distortion due to heating. It is the ideal solution for applications requiring thin marking and perfect aesthetic results such as the horology and jewelry sectors.
• VERSATILITY: METAL OR PLASTIC ENGRAVING
All types of direct marking finishes are possible thanks to the power range of the HYBRID laser. It is the perfect solution when you have a variety of parts made of different materials from hard metal to soft plastic engraving.
• INTEGRATED LASER DIRECT MARKING
This module guarantees exact and consistent DPSS laser marking without any mechanical adaptation when you change the type of part. It simplifies your integration: No need to re-adjust the focal distance, even when you are marking various types of parts with different heights on the same line. It offers more flexibility on your production lines, giving the possibility to have parts with a difference of up to 4.72 in. height without moving the laser. Just select the right marking job and you are ready to switch to another product line.
• MORE QUALITY IN ALL CONDITIONS
This module is combined with a distance sensor to make an Autofocus. The integrated laser automatically detects the part surface and adjusts the focal distance without any calibration or waiting time. Guarantee of optimal marking quality regardless of the flatness of the parts or their shape, constant contrast & depth.
Boost your productivity with the fastest solution. Instant refocus - Less than .1 second to change focal distance and reduce your marking cycle time.
• MORE POSSIBILITIES IN PERMANENT MARKING
This HYBRID laser marker also manages cylindrical surfaces, angled planes, and multilevel surfaces without any head movement. Instantaneous marking on a complex part with the possibility to mix curved surfaces and angled planes at different heights up to 4.72 in amplitude. No character deformation and a uniform contrast over the entire engraving area.
Download Catalogue
Green
GREEN laser marker is designed for complex and cold markings on materials not reactive to other wavelengths. In addition, the GREEN laser has a small spot diameter that offers unsurpassed marking quality and accuracy on a wide range of materials.
• COLD LASER MARKING
Cold laser marking refers to marking and treatment carried out with minimal thermal stress. Laser beam concentration allows marking without generating heat into parts, avoiding any burning or damage. This marking doesn't alter the material and is an ideal solution for marking soft materials and sensitive components.
• ULTRA-HIGH-DEFINITION MARKING
Gravotech has developed green laser engravers that guarantee small and fine markings, it offers a fine spot size of 20 μm and small markings with exceptional resolution while limiting thermal stress on the material. Small 2D Datamatrix, detailed logo, precise removal of thin layers of coating: the GREEN Series can meet allof your application challenges.
• MARK THE IMPOSSIBLE
Its versatility is almost unrivaled. This range uses a 532 nm wavelength to mark materials that would not normally react to infrared wavelengths: from rough to the most transparent plastics, reflective metals (copper, silver, gold), ceramic, cardboard, wood.
• INDUSTRIAL LASER FOR ELECTRICAL EQUIPMENT AND ELECTRONICS
All electrical devices use plastic with specific properties:
- Insulating properties, not to conduct electricity.
- Fire resistance, through the use of special flame retardant additives, temperature Resistance.
These technical plastics with additives do not react to standard IR laser (1064 nm). GREEN laser marking works perfectly and offers a contrasted marking to replace inkjet and label solutions. You can use it for the CE & normative marking, technical specifications, pins & terminal references, etc.
This GREEN laser marker saves time and money as it requires no consumables and is a high-productivity, eco-friendly solution.
• PRECIOUS PERMANENT MARKING METAL SPECIALIST
The GREEN series laser reacts perfectly with precious metals such as gold & silver, as well as other highly reflective materials such as copper, stainless steel, and brass. The very high absorption rate of 532 nm wavelength gives a contrasted marking resistant to corrosion. The risk of blackening and staining is reduced by the low heat delivered by the laser beam. You have no loss of material as the permanent laser marking is very thin and localized. It is also perfect to mark on thin metal sheets, there is no deformation due to heat from the Green laser marker. Market Examples are, Stores & Jewelry, traceability of precious metals such as gold and silver, traceability of medical devices.
Download Catalogue
• COLD LASER MARKING
Cold laser marking refers to marking and treatment carried out with minimal thermal stress. Laser beam concentration allows marking without generating heat into parts, avoiding any burning or damage. This marking doesn't alter the material and is an ideal solution for marking soft materials and sensitive components.
• ULTRA-HIGH-DEFINITION MARKING
Gravotech has developed green laser engravers that guarantee small and fine markings, it offers a fine spot size of 20 μm and small markings with exceptional resolution while limiting thermal stress on the material. Small 2D Datamatrix, detailed logo, precise removal of thin layers of coating: the GREEN Series can meet allof your application challenges.
• MARK THE IMPOSSIBLE
Its versatility is almost unrivaled. This range uses a 532 nm wavelength to mark materials that would not normally react to infrared wavelengths: from rough to the most transparent plastics, reflective metals (copper, silver, gold), ceramic, cardboard, wood.
• INDUSTRIAL LASER FOR ELECTRICAL EQUIPMENT AND ELECTRONICS
All electrical devices use plastic with specific properties:
- Insulating properties, not to conduct electricity.
- Fire resistance, through the use of special flame retardant additives, temperature Resistance.
These technical plastics with additives do not react to standard IR laser (1064 nm). GREEN laser marking works perfectly and offers a contrasted marking to replace inkjet and label solutions. You can use it for the CE & normative marking, technical specifications, pins & terminal references, etc.
This GREEN laser marker saves time and money as it requires no consumables and is a high-productivity, eco-friendly solution.
• PRECIOUS PERMANENT MARKING METAL SPECIALIST
The GREEN series laser reacts perfectly with precious metals such as gold & silver, as well as other highly reflective materials such as copper, stainless steel, and brass. The very high absorption rate of 532 nm wavelength gives a contrasted marking resistant to corrosion. The risk of blackening and staining is reduced by the low heat delivered by the laser beam. You have no loss of material as the permanent laser marking is very thin and localized. It is also perfect to mark on thin metal sheets, there is no deformation due to heat from the Green laser marker. Market Examples are, Stores & Jewelry, traceability of precious metals such as gold and silver, traceability of medical devices.
Download Catalogue
